The Impact of Different Types of Ball Screw Supports on Equipment

Date: 2025.11.07 Views: 85

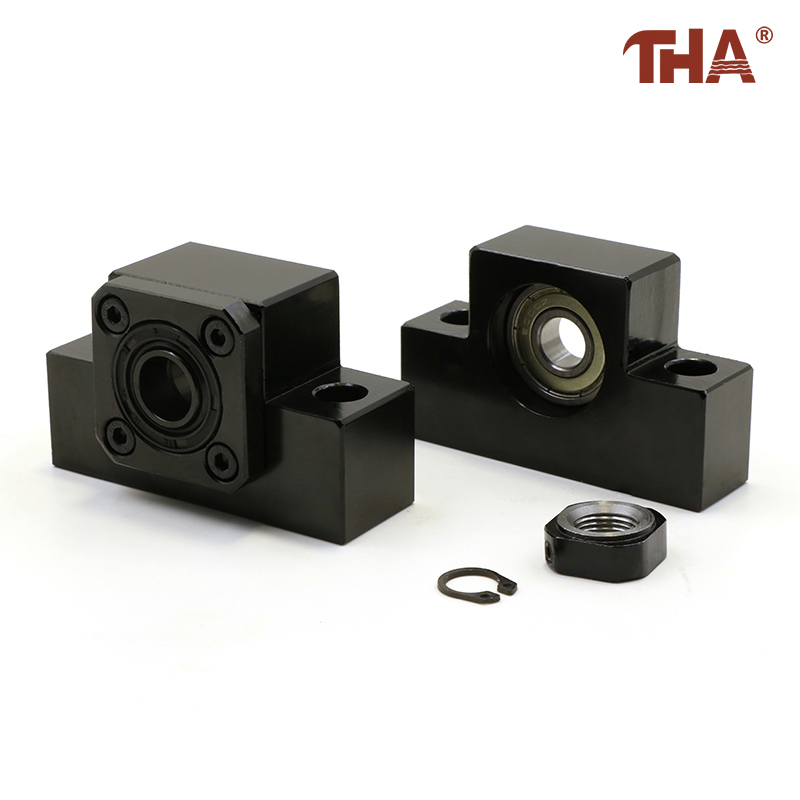

Within the precision transmission sector, ball screw supports serve as core components of ball screws. Their selection directly determines the rigidity, accuracy, and operational stability of mechanical systems. From the low-torque design of square support blocks to the suspension adaptability of circular support blocks, and from precision measurement scenarios requiring light preload to industrial heavy-duty applications demanding heavy preload, diverse support block types precisely cater to varied application scenarios—ranging from machine tools to automated equipment—through differentiated designs in structure, preload, and mounting methods.

Classified by the type of integrated bearing, the application differences between various ball support brackets primarily concern load adaptation. Deep groove ball bearing types can only withstand radial loads, making them suitable for light-load scenarios such as 3D printer nozzle drives and small automated feeding mechanisms. Angular contact ball bearing types can simultaneously bear both radial and axial loads, serving as the core choice for feed axes in CNC lathes and precision dispensing machine slides, capable of meeting high-precision positioning demands under medium loads.

From a structural design perspective, the application distinctions lie in installation space and environmental adaptability. The integrated ball screw support base features a compact, high-rigidity structure that facilitates straightforward installation and minimises maintenance requirements. It is ideally suited for applications with limited space and stringent stability demands, such as semiconductor lithography equipment and surgical robots. Conversely, the split-type support base allows flexible adjustment of bearing clearance and permits individual bearing replacement during maintenance. This configuration proves more advantageous for retrofitting older machine tools, deploying equipment in high-dust environments, and accommodating irregular mounting holes or situations where bearings are prone to wear.

The precision grade of support brackets determines the accuracy threshold for their application scenarios. C3-grade brackets exhibit minimal radial runout error, making them essential for nanometre-level precision equipment such as semiconductor lithography machines and surgical robots. C5-grade brackets suit CNC milling machines and automotive component inspection equipment. C7-grade brackets offer medium precision, compatible with standard 3D printers and small assembly lines. Grade C0, the lowest precision level, is reserved for coarse applications with no accuracy requirements, such as standard conveyor belt drives and simple manual adjustment mechanisms.

The diversification of ball screw support block types fundamentally represents the precision transmission sector's technical response to varied operational conditions. During practical selection, comprehensive consideration must be given to equipment type, load characteristics, speed requirements, and environmental conditions. Only by matching the support block type with the ball screw specifications can the transmission system's performance be maximised.
