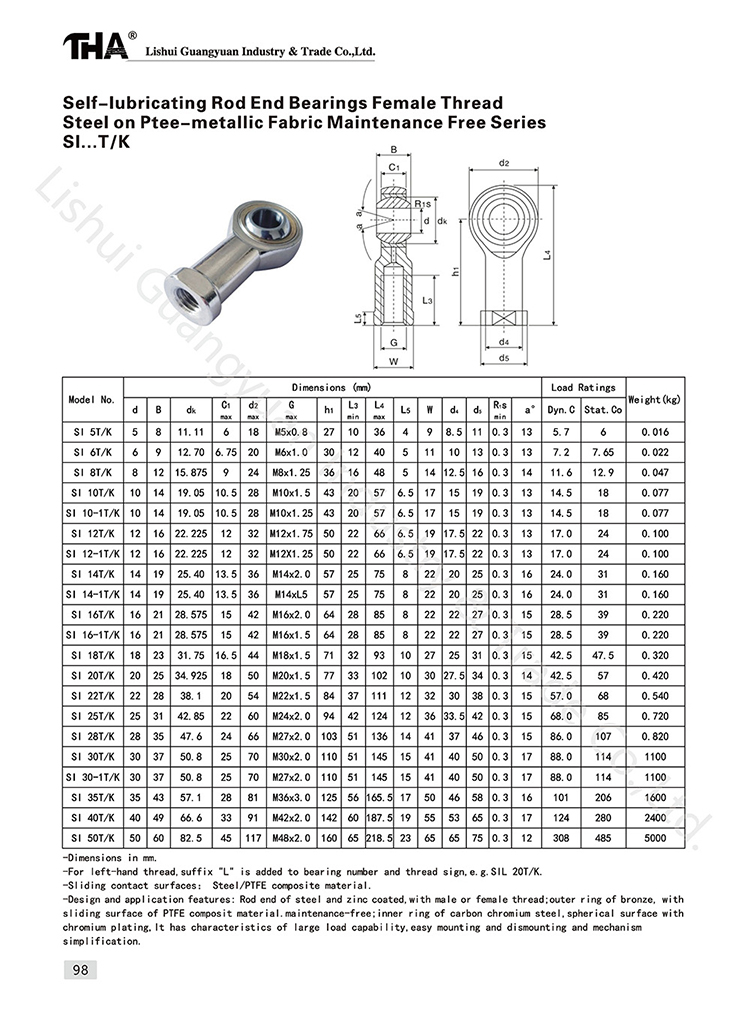

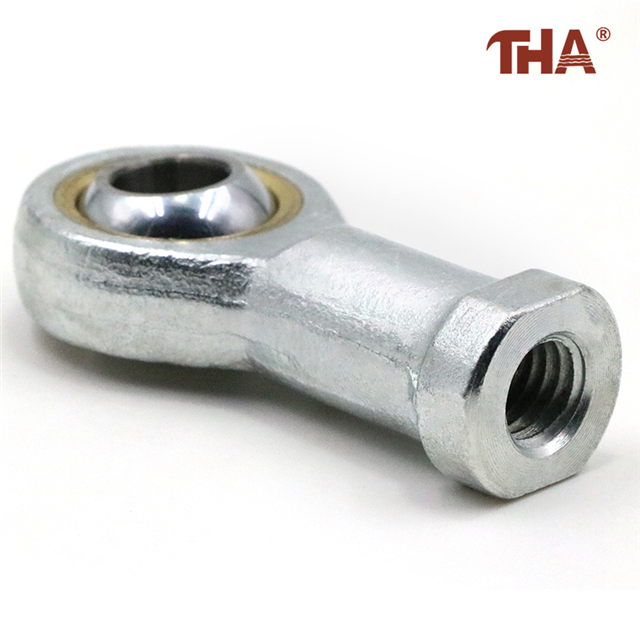

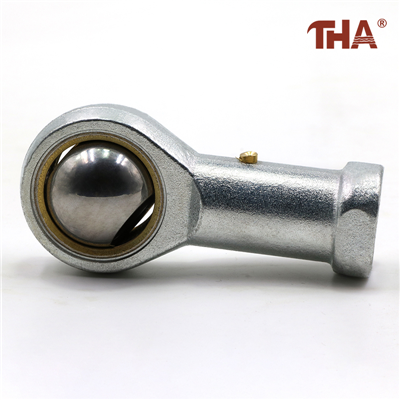

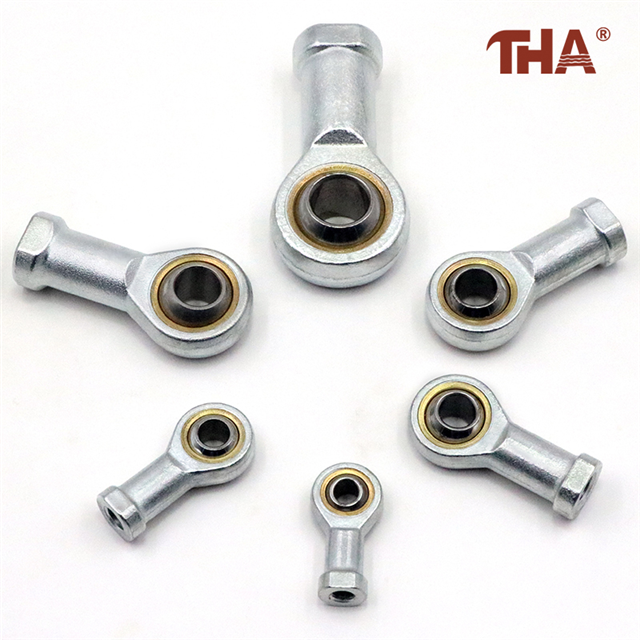

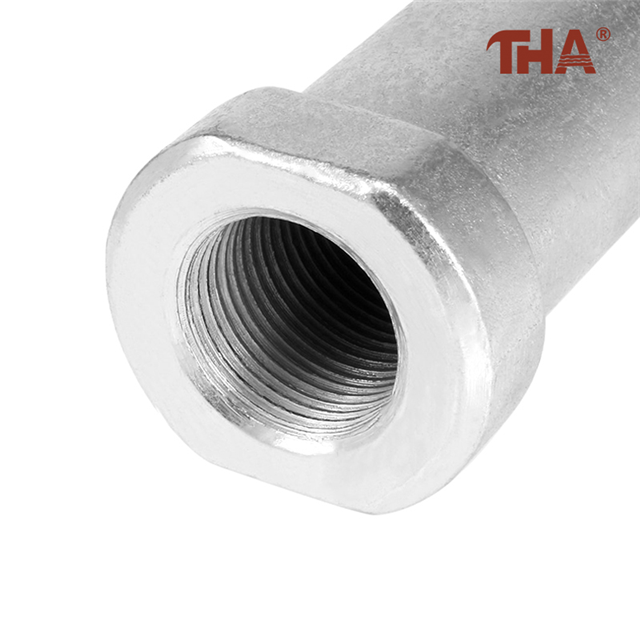

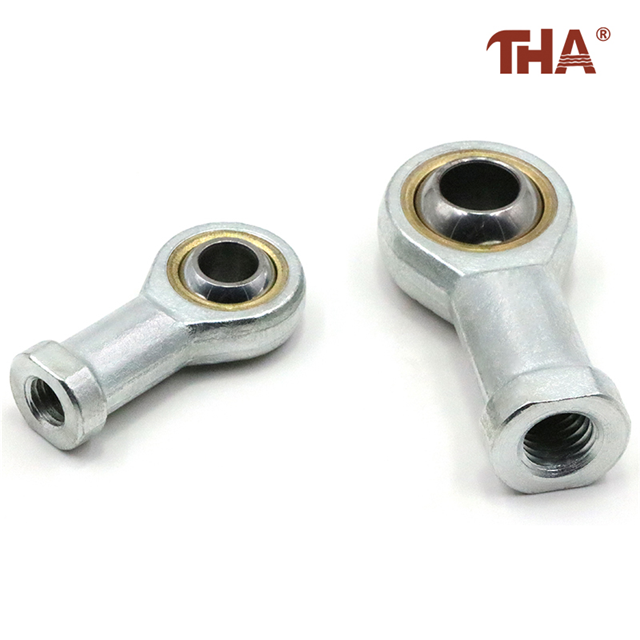

A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end (which requires perfect 90 degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female. The heim joint's advantage is that the ball insert permits the rod or bolt passing through it to be misaligned to a limited degree (an angle other than 90 degrees). A link terminated in two heim joints permits misalignment of their attached shafts.
Features & Advantages
* High load capacity
* High positional accuracy
* Low friction with flexible oscillation
* Shock absorption and vibration damping
* Easy installation
* Maintenance-free
* Long service life
Function
With multi-angle oscillation, load-bearing capability, and compact flexibility, it is widely used in mechanical systems requiring combined rotational + oscillating motions, including:
* Hydraulic systems
* Robotic arm joints
* Conveyor adjustment mechanisms
* Printing/packaging equipment
* Food/pharmaceutical equipment
About Us
Why Choose Us
FAQ
1.Q:How is the service?
A:We provide good pre-sales, in-sales and after-sales services for you.
2.Q: How can I get pricing?
A: Email us (Samples or drawings provided be preferred), quantity you need, if any specific material or surface treatment required. We will send you quote within 48 hours.
3.Q:What is about the packing of the goods?
A:We use standard and strong export packing or according to your requirements.
4. Q:What is MOQ?
A:For inventory items, no minimum order quantity .
For other items, would you please check our specific details for each item to get the MOQ. Any special requirement, please tell us.
5.Q:How to contact us?
A:You can chat with us online, call us, send us email, send messages via trade manager, wechat, whatsapp, etc.
